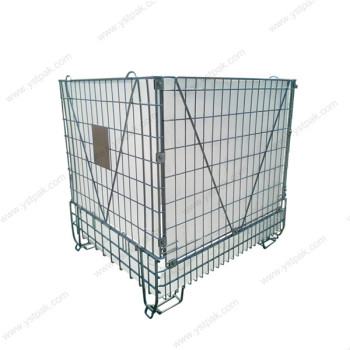

Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers

Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers
Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containersHot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containersHot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containersHot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containersHot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers
group name
Mesh container - EU series
Min Order
50 set
model
EUF28
Nearest port for product export
Qingdao, Dalian, Xiamen
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU
Acceptable payment methods
T/T, L/C, Credit Card
update time
Wed, 03 Nov 2021 17:03:20 GMT

Paramtents

  • Ext. Dim. 1200L×1010W×1200H mm

  • Grid Size 62 x 125 mm

  • Loading Capacity 800 kg

  • Load in 40'HQ 168 sets

  • Material Mild Steel Q235

  • Finish Zinc plated/ Hot dip galvanized/Powder coating

  • Available Accessories PP sheet/ wheels/ forklift guide/ top lid/ divider

  • Application Area PET Preform, Recycling, Agriculture industry, etc

Packging & Delivery

  • Min Order50 set

Briefing

Specially designed for PET Preform industry, for storage or transport, PP sheet inner lining

Detailed

NO.
Ext. Dim.
Wire Guage
Dim. of Grid
Loading Capacity
Loaded in 1x40HQ
LxWxH (mm)
mm
mm
kg
sets
EUF28
1200x1010x1200
5-12
62x125
800
168
Material
Mild steel Q235
Optional accessories
PP sheet, wheels, forklift guide, security lid, divider, etc.
Application area
PET Preform, warehouse, logistic, recycling, agricultural industry, etc.
Finish
Zinc/hot dip galvanized/powder coating
Remark
Customized & OEM support
Collapsible wire containers



  1. 1. Choose from a variety of
  2. –Loading capacity- light duty (0 kg to 400 kg), medium duty(400 to
  3. 800 kg), heavy duty(over 800 kg)
  4. 2. Open mesh – excellent ventilation
  5. 3. Standard 1/2 front drop gate
  6. 4. Fully collapsible and stackable – save space
    5. Easily moved around by forklift, even when fully loaded
    6. Connected by clips
    7. Zinc, hot-dip galvanized, powder coating finish
Foldable & stackable
Reduce shipping cost, save space.
Limit wire structure
Guaranteeing the stability during stacking
Strong bottom
Welded cross bars enhance bottom bearing capacity
Latch structure
Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items
Optional designs & accessories
Dolly
Allows for easy movement of containers without the use of a forklift
Castors
A quick solution to mobilize containers without interfering stackability
Divider
Front-to-back or left-to-right, for multiple products to be stored in one container
Security lid
Secure for parts in storage or transit
Forklift guide
Colorful PP sheet
With big bag
Specially designed for PET Preform bottle/ plastic cap storage
Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers
