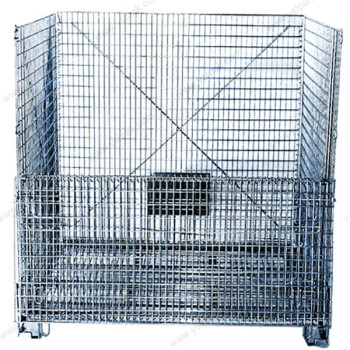

Galvanized Warehouse PET Preform Storage Steel Wire Container

Galvanized Warehouse PET Preform Storage Steel Wire Container
Galvanized Warehouse PET Preform Storage Steel Wire ContainerGalvanized Warehouse PET Preform Storage Steel Wire ContainerGalvanized Warehouse PET Preform Storage Steel Wire ContainerGalvanized Warehouse PET Preform Storage Steel Wire ContainerGalvanized Warehouse PET Preform Storage Steel Wire Container
group name
PET Preform industry
Min Order
50 set
model
JPW10
Nearest port for product export
Qingdao, Dalian, Xiamen
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU
Acceptable payment methods
T/T, L/C, Credit Card
update time
Fri, 05 Nov 2021 17:45:03 GMT

Paramtents

  • Ext. Dim. 1200L x1000Wx1250H(mm)

  • Grid Size 25x50 mm

  • Loading Capacity 800 kg

  • Load in 40'GP 216 sets

  • Material Mild Steel Q235

  • Finish Zinc plated/ Hot dip galvanized/Powder coating

  • Available Accessories Wheels, forklift guide, runner bar, divider, etc.

  • Application Area Warehouse, Logistic, Recycling, PET Preform, Agricultural industry, etc.

Packging & Delivery

  • Min Order50 set

Briefing

“U”shape frame on feet,more stable when stack, 1200L*1000W*1250H mm, mesh 25*50 mm

Detailed

NO.
Ext. Dim.
Wire Guage
Dim. of Grid
Loading Capacity
Loaded in 1x40GP
LxWxH (mm)
mm
mm
kg
sets
JPW10
1200x1000x1250
6
25x50
800
216
Material
Mild steel Q235
Optional accessories
Wheels, forklift guide, runner bar, security lid, divider, etc.
Application area
Warehouse, logistic, recycling, PET Preform, agricultural industry, etc.
Finish
Zinc/hot dip galvanized/powder coating
Remark
Customized & OEM support
Steel wire mesh container

  1. 1. Open mesh – excellent ventilation

  2. 2. Cap channel over wire perimeter for added protection

  3. 3. Half fold-down gate – easy access

  4. 4. Fully collapsible when not in use – save storage space

  5. 5. Easily moved around by forklift, even when fully loaded

  6. 6. Connected by helix

  7. 7. Zinc, hot-dip galvanized, powder coating finish
Square cup foot with U shape
Special supporting leg structure for secure stacking.
Limit wire structure
Guaranteeing the stability during stacking
Flat clasp structure
Strengthening the connection strength of the foldable wire mesh container
Latch structure
Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items
Optional designs & accessories
Dolly
Allows for easy movement of containers without the use of a forklift
Castors
A quick solution to mobilize containers without interfering stackability
Divider
Front-to-back or left-to-right, for multiple products to be stored in one container
Security lid
Secure for parts in storage or transit
Forklift guide
PP sheet inner lining
Runner bar
PET Prefrom industry
Warehouse & Logistic
 To see the steel wire mesh container video
