Euro warehouse stacking folding welded wine storage steel wire mesh containers

Euro warehouse stacking folding welded wine storage steel wire mesh containers

group name: Mesh container - EU series

Min Order: 50 set

model: EUF1

Nearest port for product export: Qingdao, Dalian, Xiamen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU

Acceptable payment methods: T/T, L/C, Credit Card

update time: Wed, 03 Nov 2021 15:31:41 GMT

contact supplier

Paramtents

Ext. Dim. 1140L×830W×980H mm
Grid Size 55 x 113 mm
Loading Capacity 800 kg
Load in 40HQ 332 sets
Material Mild Steel Q235
Finish Zinc plated/ Hot dip galvanized/Powder coating
Available Accessories PP sheet/ wheels/ forklift guide/ top lid/ divider
Application Area PET Preform, Recycling, Agriculture industry, etc

Packging & Delivery

Min Order50 set

Briefing

For wine storage, load of 500 bottles of “Bourgogne”. Stackable, collapsible.

Detailed

NO.	Ext. Dim.	Folded Height	Dim. of Grid	Loading Capacity	Loaded in 1x40HQ
NO.	LxWxH (mm)	mm	mm	kg	sets
EUF1	1140x830x980	300	55x113	800	332
Material	Mild steel Q235
Optional accessories	PP sheet, wheels, forklift guide, security lid, divider, etc.
Application area	Wine bottle storage, warehouse, logistic, recycling, agricultural industry, etc.
Finish	Zinc/hot dip galvanized/powder coating
Remark	Customized & OEM support

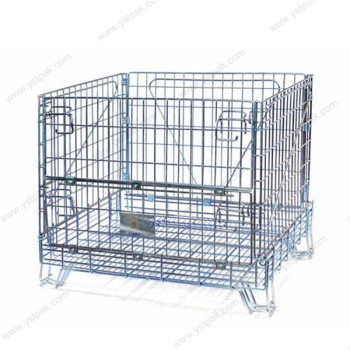

Foldable wire mesh container

1. Choose from a variety of
–Loading capacity- light duty (0 kg to 400 kg), medium duty(400 to
800 kg), heavy duty(over 800 kg)
2. Open mesh – excellent ventilation
3. Standard 1/2 front drop gate
4. Fully collapsible and stackable – save space
5. Easily moved around by forklift, even when fully loaded
6. Connected by clips
7. Zinc, hot-dip galvanized, powder coating finish

Foldable & stackable

Reduce shipping cost, save space.

Limit wire structure

Guaranteeing the stability during stacking

Flat clasp structure

Strengthening the connection strength of the foldable wire mesh container

Latch structure

Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items

Optional designs & accessories

Dolly

Allows for easy movement of containers without the use of a forklift

Castors

A quick solution to mobilize containers without interfering stackability

Divider

Front-to-back or left-to-right, for multiple products to be stored in one container

Security lid

Secure for parts in storage or transit

Forklift guide

Colorful PP sheet inner lining
