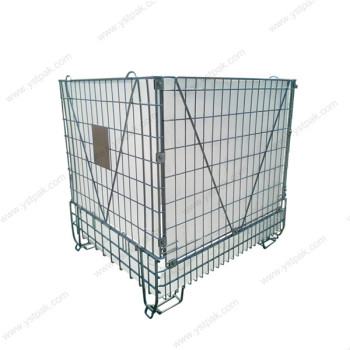

Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers

Hot sale medium duty qualified collapsible stackable storage metal PET Preform wire mesh containers

group name: Mesh container - EU series

Min Order: 50 set

model: EUF28

Nearest port for product export: Qingdao, Dalian, Xiamen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU

Acceptable payment methods: T/T, L/C, Credit Card

update time: Wed, 03 Nov 2021 17:03:20 GMT

contact supplier

Paramtents

Ext. Dim. 1200L×1010W×1200H mm
Grid Size 62 x 125 mm
Loading Capacity 800 kg
Load in 40'HQ 168 sets
Material Mild Steel Q235
Finish Zinc plated/ Hot dip galvanized/Powder coating
Available Accessories PP sheet/ wheels/ forklift guide/ top lid/ divider
Application Area PET Preform, Recycling, Agriculture industry, etc

Packging & Delivery

Min Order50 set

Briefing

Specially designed for PET Preform industry, for storage or transport, PP sheet inner lining

Detailed

NO.	Ext. Dim.	Wire Guage	Dim. of Grid	Loading Capacity	Loaded in 1x40HQ
NO.	LxWxH (mm)	mm	mm	kg	sets
EUF28	1200x1010x1200	5-12	62x125	800	168
Material	Mild steel Q235
Optional accessories	PP sheet, wheels, forklift guide, security lid, divider, etc.
Application area	PET Preform, warehouse, logistic, recycling, agricultural industry, etc.
Finish	Zinc/hot dip galvanized/powder coating
Remark	Customized & OEM support

Collapsible wire containers

1. Choose from a variety of
–Loading capacity- light duty (0 kg to 400 kg), medium duty(400 to
800 kg), heavy duty(over 800 kg)
2. Open mesh – excellent ventilation
3. Standard 1/2 front drop gate
4. Fully collapsible and stackable – save space
5. Easily moved around by forklift, even when fully loaded
6. Connected by clips
7. Zinc, hot-dip galvanized, powder coating finish

Foldable & stackable

Reduce shipping cost, save space.

Limit wire structure

Guaranteeing the stability during stacking

Strong bottom

Welded cross bars enhance bottom bearing capacity

Latch structure

Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items

Optional designs & accessories

Dolly

Allows for easy movement of containers without the use of a forklift

Castors

A quick solution to mobilize containers without interfering stackability

Divider

Front-to-back or left-to-right, for multiple products to be stored in one container

Security lid

Secure for parts in storage or transit

Forklift guide

Colorful PP sheet

With big bag
